Product Description

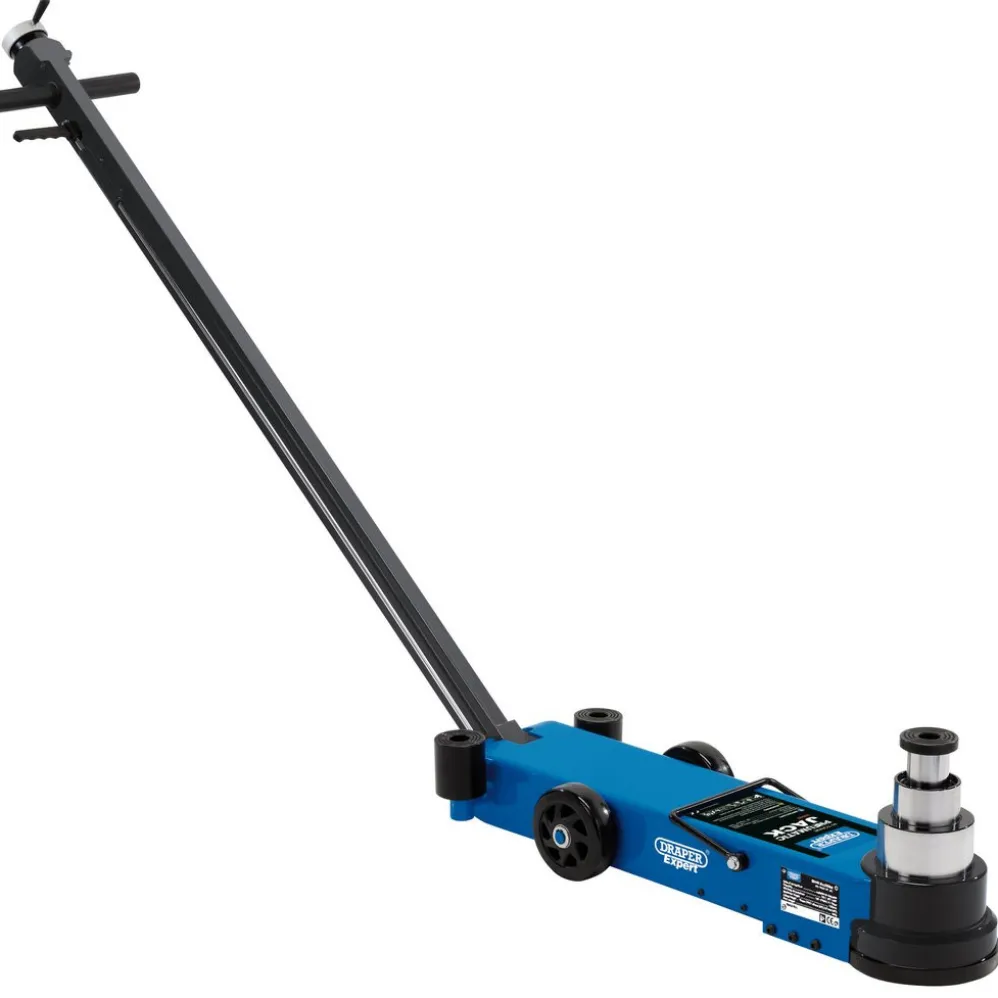

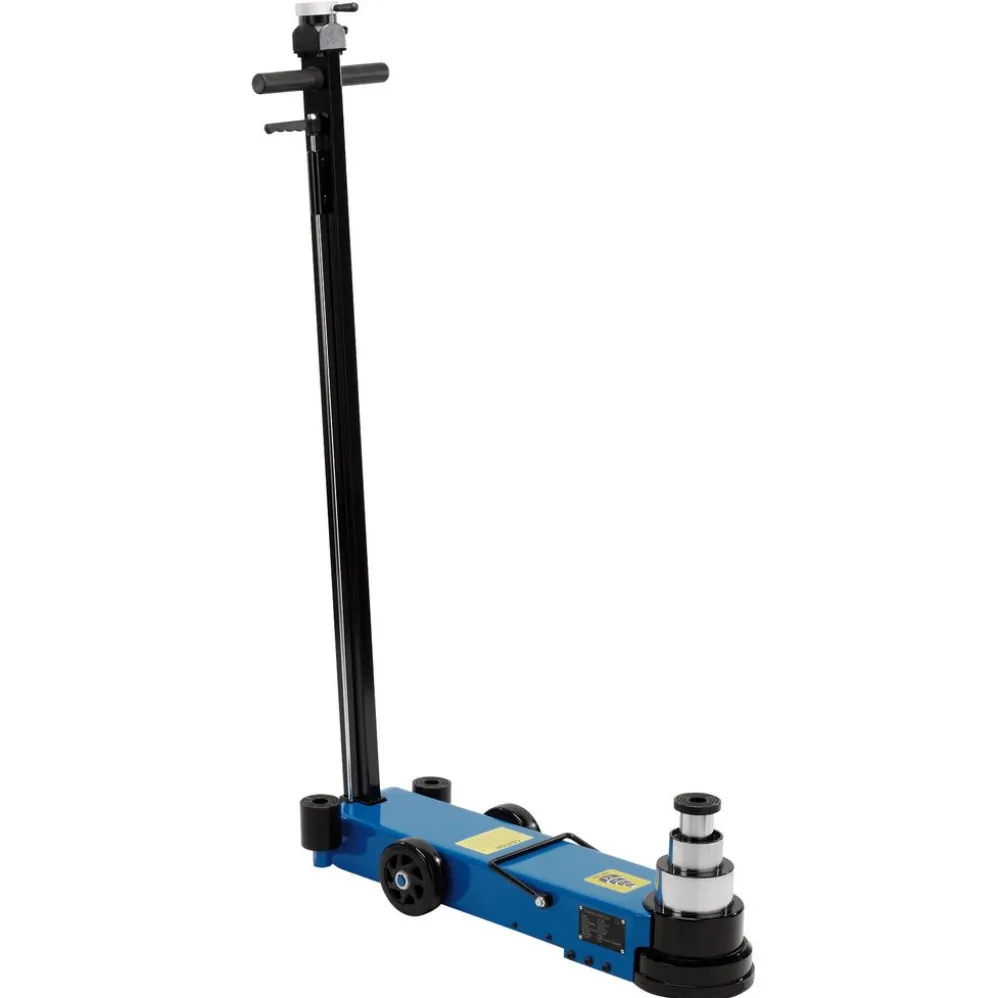

Long chassis, extra low profile pneumatic jack. The 125mm entry height has a total reach of 2210mm and is capable of lifting 40 Tonnes. The 3 stage adjustable ergonomic handle is fixed with a ‘Slow Down’ valve and a ‘Self-Return’ switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4″ BSP airline connector.
Manufactured to EN1494 Specification
| Air Consumption | 11.5cfm |
| Air Inlet | 1/4″ BSP |
| Capacity | 40 Tonne (40,000kg)20 Tonne (20,000kg)10 Tonne (10,000kg) |
| Chassis Dimensions | 830 x 179 x 125mm |
| Handle Length | 1380mm |
| Lifting Height Position 1 | 57mm |
| Max Height Stage 1 | 302mm (inc extensions) |
| Max Height Stage 2 | 347mm (inc extensions) |
| Min Height | 125mm |
| Nett Weight | 44kg |
| Operating Air Pressure | 9 – 12BAR (130 – 174psi) |
| Saddle Diameter | 70mm |
| Wheel Diameter | 125mm |
| Max Height Stage 3 | 396mm (inc extensions) |
| Wheel Width | 47.5mm |
