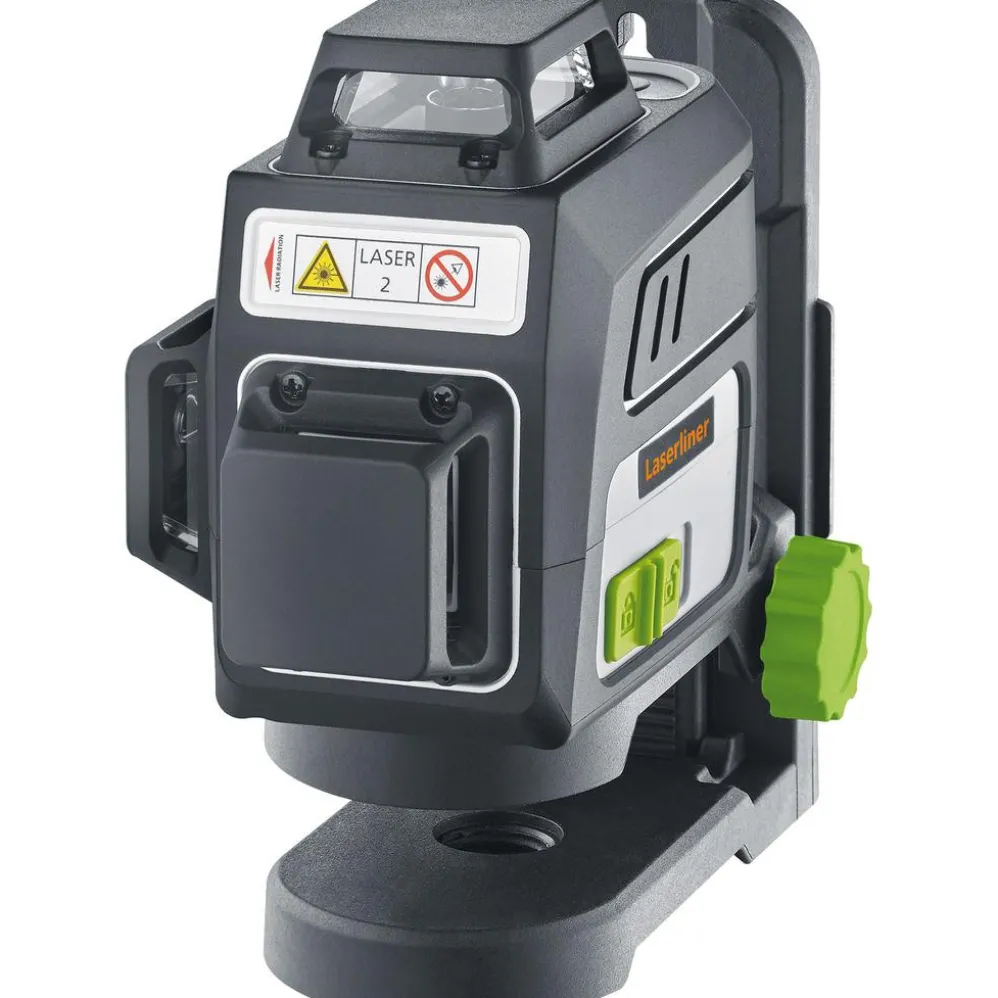

Laserliner 036.703A PocketPlane-Laser 3G Set Three-Dimensional Laser, 150cm

Laserliner 036.703A PocketPlane-Laser 3G Set Three-Dimensional Laser, 150cm

£96.86

SKU: SKUFOYPUR Categories: Electrical, Equipment, Testing Equipment Tag: Laserliner Brand: Laserliner

Description
Reviews (0)

Product Description

This three-dimensional, compact and highly visible green laser projects one horizontal and two vertical laser circles for precise alignment of objects. The laser crosses form a plumb function for working simultaneously on floors and ceilings. A manual slope mode is available for creating gradients. This laser is all you need for demanding projects thanks to the comprehensive range of accessories. Multi-section telescopic tripod legs and a 30 cm crank on this compact tripod provide an extensive adjustment range. The PocketWallHolder is a multi-functional, height-adjustable, magnetic bracket for attaching to walls, metal items and tripods with a 1/4” or 5/8” thread. Supplied with battery.

Three-dimensional laser with a horizontal and two vertical 360° laser circles

Accurate horizontal and vertical alignment of objects

Good visibility through green laser technology

Easy alignment of slopes with manual tilt function

Plumb function for synchronous working on floor and ceiling

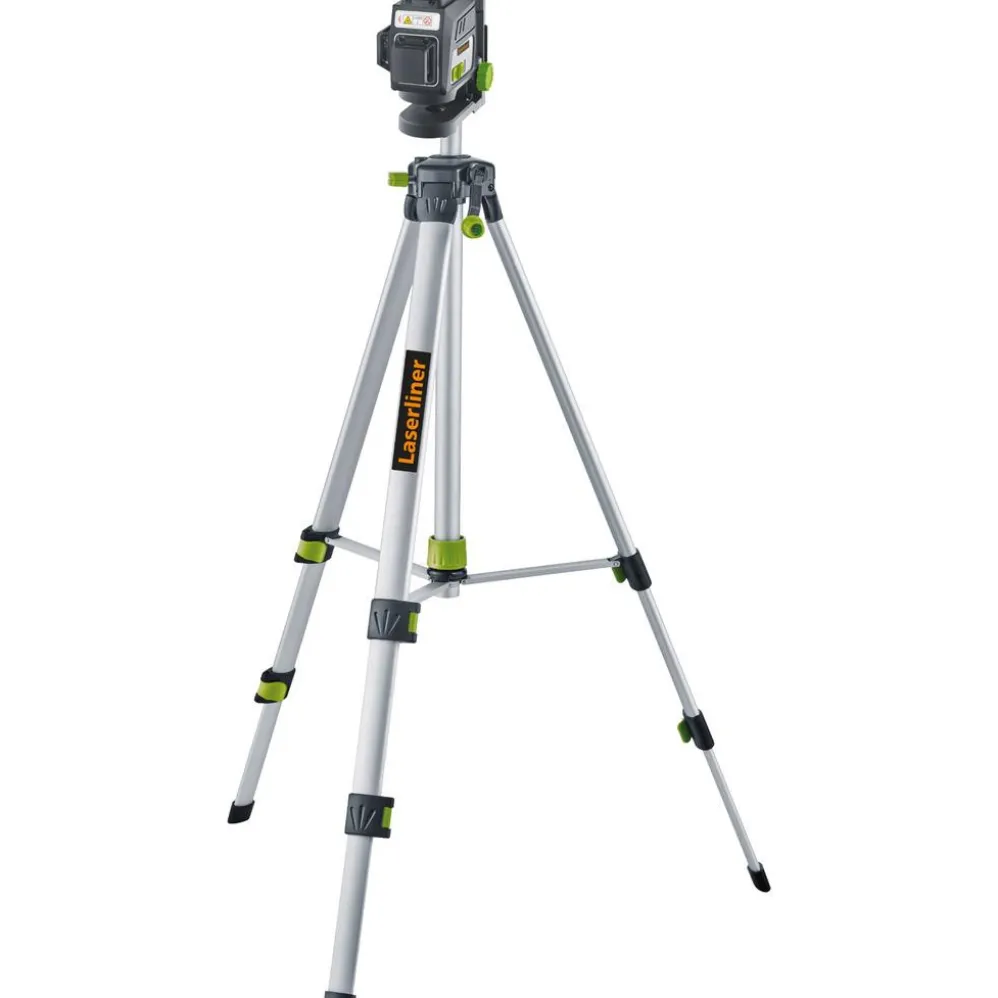

Light and robust compact tripod 150cm

Crank height adjustment and telescopic tripod legs

Height-adjustable, magnetic, multi-function bracket with 1/4” and 5/8” thread for attaching to walls, metal items and tripods

Magnetic target plate with stand, nail hole and dual scale – perfect for working close to ceilings

Supplied with battery

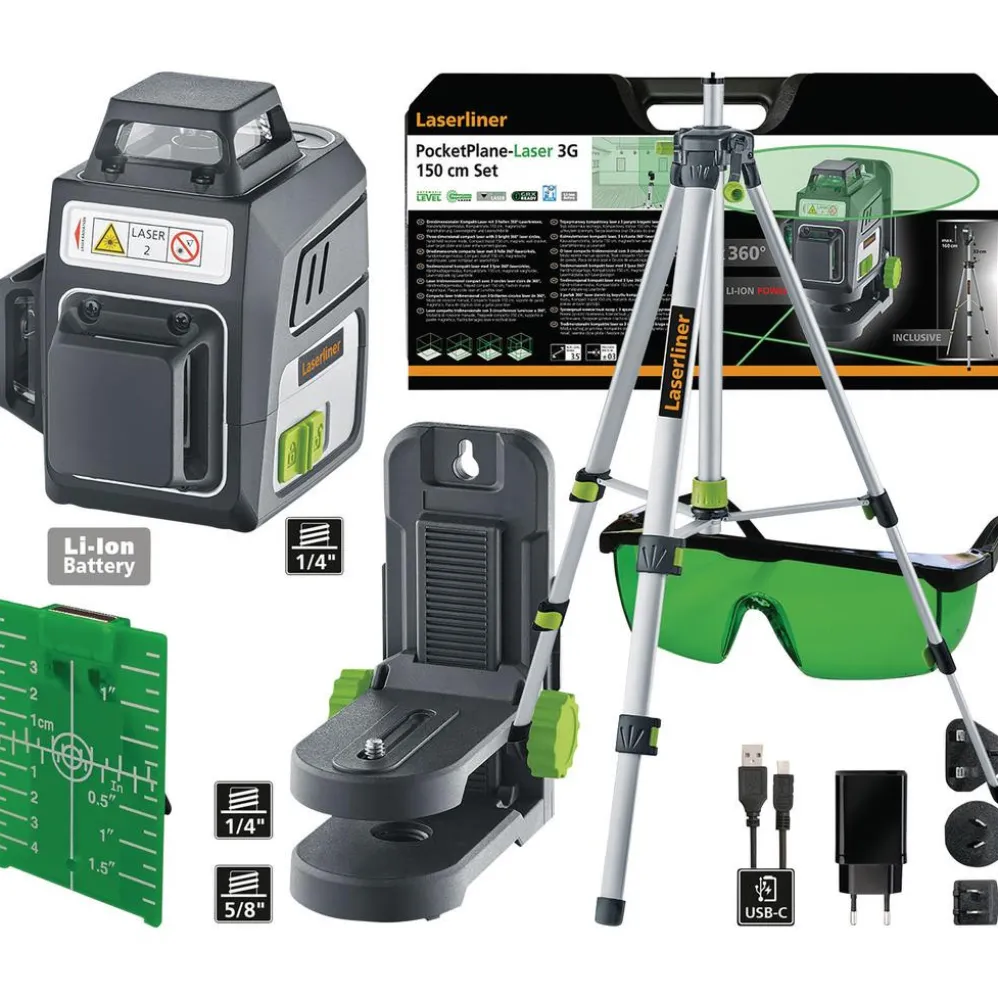

1 x Laserliner 036.703A PocketPlane-Laser 3G Set Three-Dimensional Laser, 150cm
1 x Compact tripod 150 cm
1 x PocketWallHolder
1 x Magnetic target plate green
1 x Laser enhancement glasses
1 x Li-ion battery pack
1 x Network/charging device incl. international adapter
1 x USB-C-cable
1 x Carrying case

Specifications

Horizontal/vertical levelling	Yes
Battery and mains operation	Yes
Manual slope function	Yes
Hand receiver mode	Yes
Self-Levelling Range	± 3.5° (horizontal)
Accuracy	±0.3 mm/m
Levelling	Automatic
Visibility (Typical)*	30 m
Laser Wavelength	515 nm
Laser Class	2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Power Supply	Li-ion battery pack 3.7V / 3.6Ah / 13.32Wh Power adapter 5V / DC / 2A
Operating Time	with 3 laser levels: approx. 9 hours
Operating Conditions	0°C … 50°C
Storage Conditions	-10°C … 70°C
Dimensions (W x H x D)	104 mm x 97 mm x 76 mm
Weight	388g (incl. Battery Pack)
