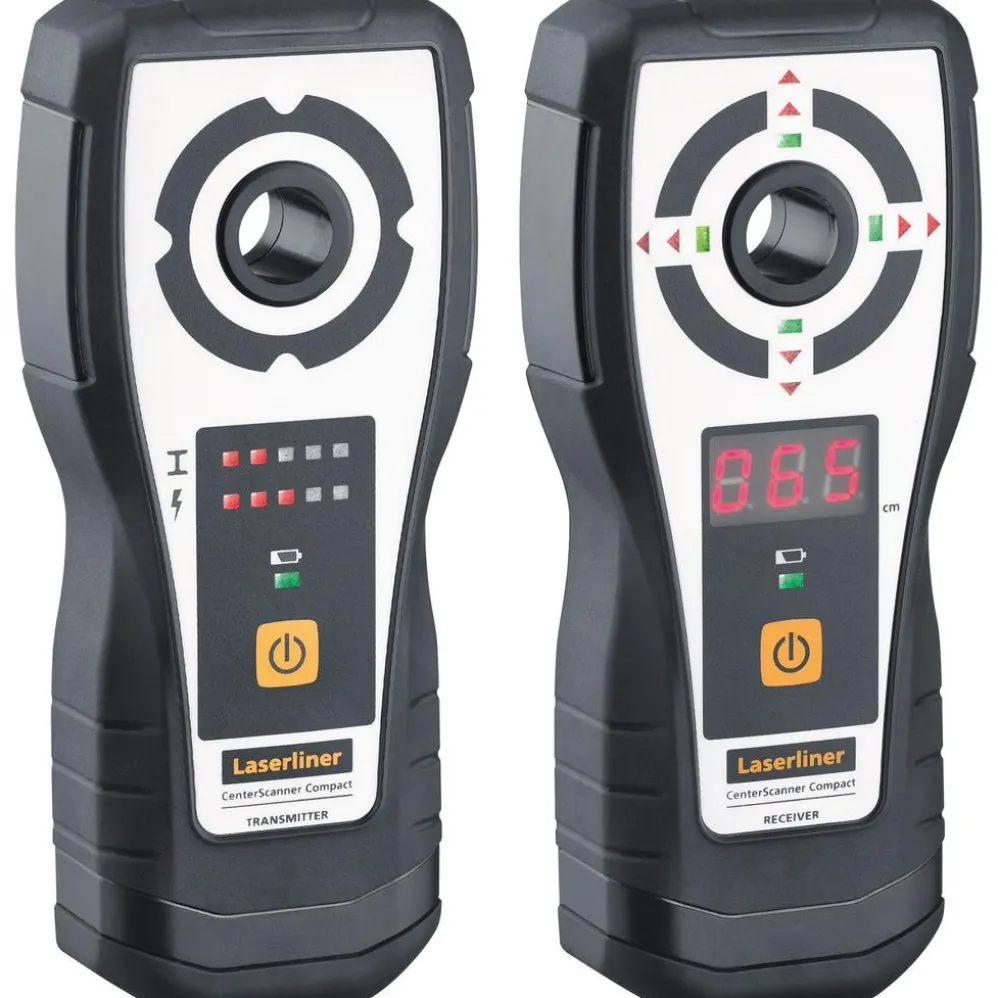

Laserliner 075.400A CenterScanner Compact Drilling Guide Device

£102.78

SKU: SKUMUDL17 Categories: Accessories, Drilling, Electrical, Equipment, Power Tools, Testing Equipment Tag: Laserliner Brand: Laserliner

Description
Reviews (0)

Product Description

This highly accurate drill guide consists of a transmitter and a receiver and provides safe alignment of the drill channel when drilling through walls and ceilings up to a depth of 120 cm. Easily visible LED indicators and acoustic signals that can be switched off provide the location. Highly accessible marking aids in the sender and receiver provide the centring. The required drilling depth can be determined up to 150 cm using the integral LCD display. A visual and acoustic warning is sent when foreign objects are detected. The sender and receiver fit comfortably in the hand thanks to their ergonomic design. Supplied with receiver RECV, adhesive kit, sliding pads (x4) batteries& a carrying case.

Easy and safe alignment of the drill channel when drilling through walls and ceilings up to a depth of 120 cm

Precise location of the entry and exit points using LED indicators

Highly accessible marking aids in the sender and receiver provide the centring

Determination of the required drilling depth up to 150 cm

Optical and acoustic warning when foreign objects detected

The sender and receiver fit comfortably in the hand thanks to their ergonomic design

Supplied with receiver RECV, adhesive kit, sliding pads (x4) batteries & a carrying case

1 x Laserliner CenterScanner Compact Drilling Guide Device
1 x Receiver RECV
1 x Adhesive kit
1 x Sliding pads (x4)
1 x Batteries
1 x Carrying case

Specifications

Operating instructions	Yes
Drill channel alignment	Yes
Wall thickness display	Yes
Measuring depth display	Yes
Warning for 230 V wires	Yes
Metal detection	Yes
Accuracy	typically 3% of measured depth
Detection Range AC	2 cm
Power Supply	RECV: 3 x 1.5V LR03 (AAA) / TX: 3 x 1.5V LR03 (AAA)
Operating Time	RECV: approx. 20 hours / TX: approx. 12 hours
Storage Conditions	-20°C … 60°C, max. 85% rH humidity, non-condensing
Dimensions (W x H x D)	77 mm x 179 mm x 31 mm
Weight	(RECV and TX inc. Batteries)
